Compression digital load cell 30t

Compression digital load cell 30t

Characteristics of the CPFN-A weighbridge compression digital load cell:

This compression-digital-load-cell-weighbridge is in stainless steel (IP69K).

  • capacity: 30 / 60 tons
  • Approved up to  5 000 d OIML R60
  • Self-centering spherical bottom sensor
  • Integrated anti-rotation system
  • Anti-rodent shielded cable

Electrical characteristics of the compression load cell:

  • voltage range: 7.5 to 16 Volts

  • Insulation resistance: 5,000 MΩ / 50 Volts



Metrological characteristics of the CPFN-A sensor

  • Nominal capacity (Cn): 30, 60 t (consult us for other capacities that are possible)
  • Combined error: ± 0.013% Cn
  • Temperature zero drift: ± 0.0014% Cn / 0 C
  • Temperature sensitivity drift: ± 0.0011% Cn / 0 C
  • Creep (30 min): 0.018% Cn

Mechanical characteristics of the load cell:

  • Permissible mechanical overload: 150% Emax
  • Compensated temperature range: -10… +40 C °
  • Degree of protection: IP69 (Standard EN 60529
  • Operating temperature range: -20… +40 C °
  • Material: stainless steel
  • Cable length: 15m
  • Anti rodent sheath integrated into the cable
  • Sensor net weight: 3.4 kg



Weighbridge compression sensor options:

  • Weighbridge compression sensor mounting kit

  • Complete assembly with integrated stops (ideal for retrofitting old weighbridges)

  • Mounting kit with stabilizing rod for weighbridge compression sensor

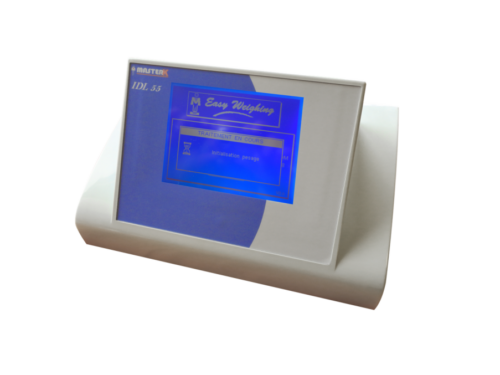

Want to complete your weighing solution? You can also have a look at our ranges of weight indicators and of weight transmitters with a weighing software.

Product reference

: 012080230N
