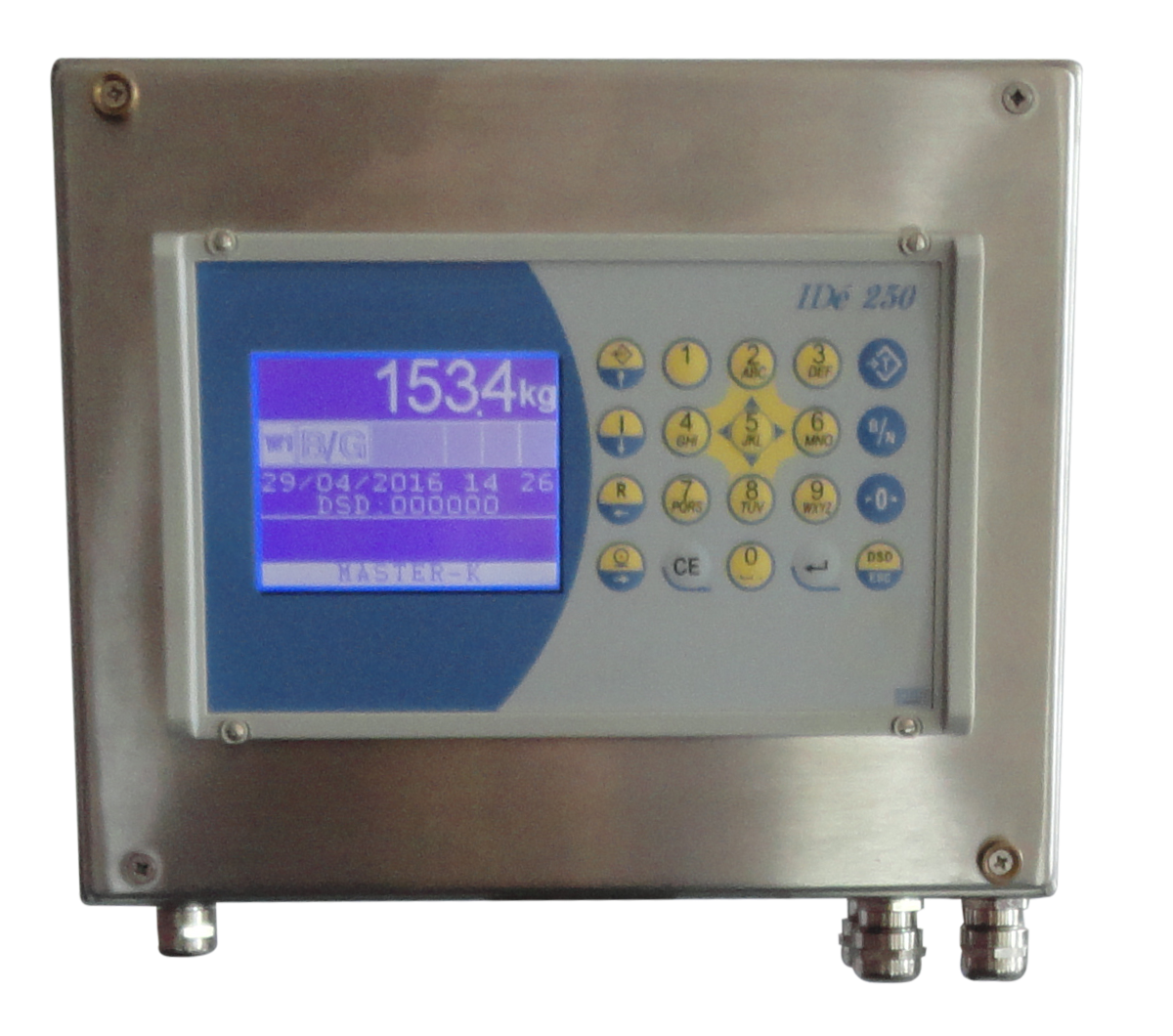

IDE250 Inox Weight Indicator for Industry

IDE250 Inox Weight indicator for Industry, compatible with analogue load cells.

The IDE 150/250 industry software was developed for this IDE250 inox weight indicator, in order to manage weighing applications for industrial processes.

This inox weight indicator can control a relay board to manage alarms in a fully autonomous way (tank overflow, for instance).
Furthermore, its approved Data Storage Device (DSD) file meets the obligations for legal metrology.
Many communication options (Fieldbus, analogue output … ) are available for real-time automatic weighing control (PC / PLC).

Sofware features :

  • 4 thresholds available with 4I /40 board
  • Dedicated input functions :
    • l1 => print request
    • l2 => zeroing request
    • l3 => delate tare request
    • l4 => taring request (semi-automatic tare)

In addition, here are other characteristics of the inox weighing indicator :

  • 2 filtering modes of the weighing measurement: self-adaptating filtering or continous filtering.
  • Weighing tickets fully customizable
  • Transfer and backup data to and from a USB flash drive or PC
  • Also, it has an Alibi memory of 100 000 weighings



Download below the technical file of this weighing indicator.

You can see more pictures of company’s weighing solutions on our LinkedIn page.

Product reference

: 050020310+021020015
Download the technical manual
